Full 180° panoramic view, AI-powered detection, and active deterrence. Can one camera really do it all?
This review is part of a series that focuses on more advanced, professional-grade cameras, that offer familiar home security solutions. Alongside this model, you’ll find reviews on cameras like the AI-powered Dahua Wiz Color, Hikvision AcuSense the unique triple-lens camera, ANPR, Duo 180° and even a thermal security camera designed to detect what standard cameras can’t. Together, they represent different approaches to the same goal: giving you a clearer, smarter view of what’s really happening around your home.

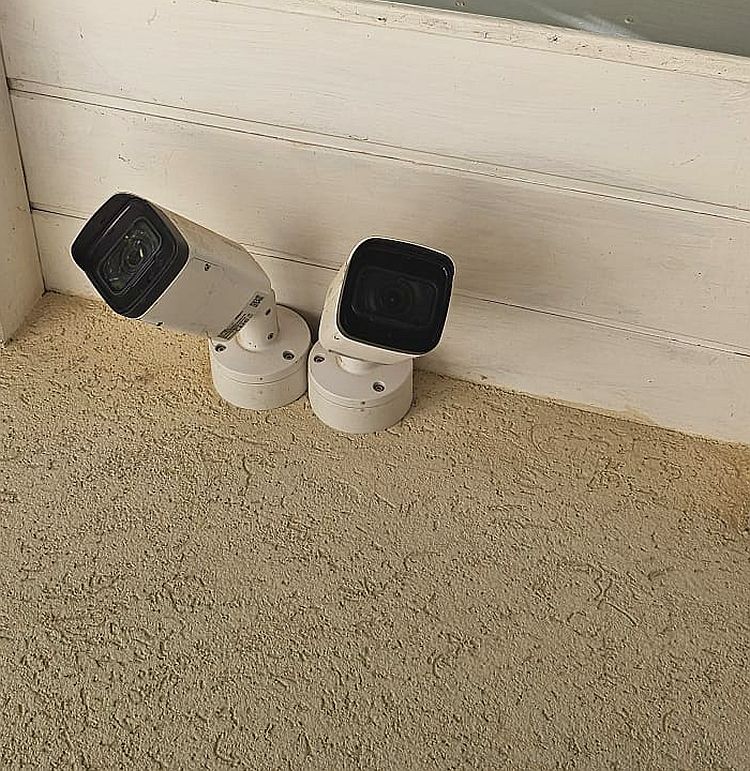

One of the less appealing sights in the world of security cameras is seeing multiple surveillance units mounted side by side, each pointed in a different direction. Beyond the aesthetic issue, there’s also a practical challenge: trying to piece together footage from several cameras often leaves gaps that simply aren’t covered. The reason for placing cameras so close together, each facing a different angle, is usually the need to monitor a wide area, which is larger than what a single camera can capture. In public spaces, that makes sense. But in private homes and apartment buildings, it can feel excessive and even intrusive.
To address the need for panoramic coverage, Dahua recently developed its DUO line cameras which are equipped with two lenses positioned at a 90-degree angle to each other. The footage from both lenses is processed into a single seamless panoramic image. When I first saw the effect, and how two separate video feeds are stitched together so smoothly that you can’t tell where one ends and the other begins, I knew this was something worth taking a closer look at.
WizSense: Smarter Alerts, Fewer False Alarms

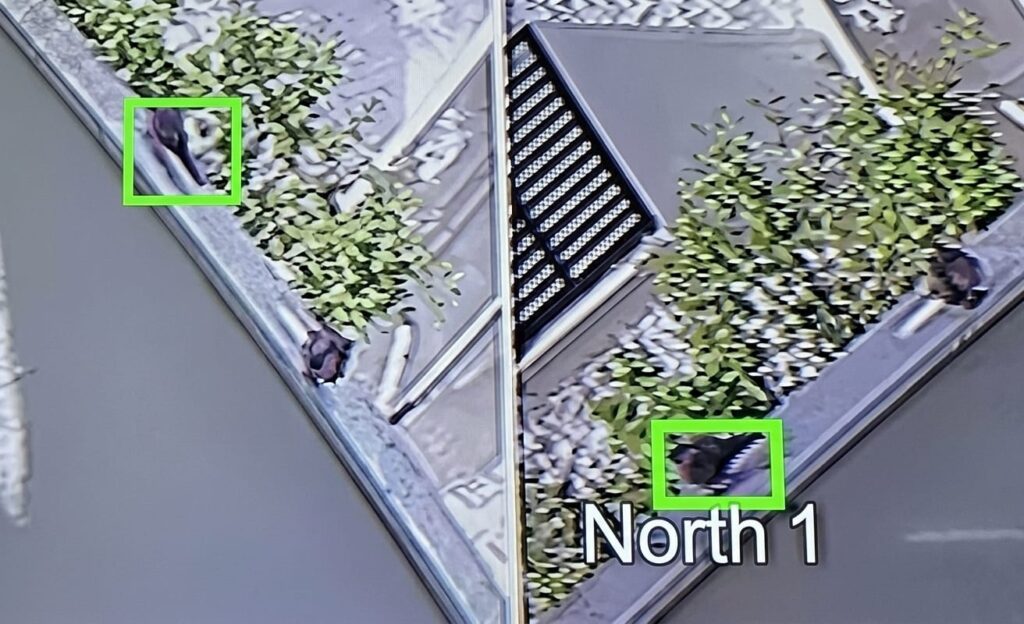

One of the biggest frustrations with traditional security cameras is false alerts. Older analytics systems often mistake tree branches, birds, or even shifting light and shadows for real threats. Lowering sensitivity doesn’t really solve the issue, which is why many users end up disabling notifications altogether.
Dahua addresses this with its WizSense technology, which includes a dedicated AI chip and deep learning algorithms. The system can accurately distinguish between people and vehicles while ignoring animals and irrelevant motion, delivering alerts that actually matter.
Taking things further, the TiOC 2.0 series enhances this intelligence with additional features:
- A high-quality lens for excellent low-light performance
- A white light that activates upon detection to capture full-color footage
- A powerful siren for deterrence
- A speaker capable of playing pre-recorded or built-in messages
- Red and blue warning lights for added visibility and deterrence
The Smart Dual Light system works alongside the AI engine: infrared lighting operates by default at night, but when a target enters a defined monitoring zone, white light activates and the camera switches to full-color recording. Outside that zone, it reverts to infrared.
SMD 4.0 (Smart Motion Detection) further refines detection by classifying objects and ignoring anything that isn’t relevant, such as animals, reducing false alarms even more. When paired with Dahua’s AI-enabled NVR, the AcuPick feature allows users to tag human or vehicle targets and quickly search for them in recorded footage.
Compared to the previous generation, TiOC 2.0 adds improvements such as scheduled analytics, enhanced visual processing, customizable alerts via the DMSS app, one-touch control for active deterrence features, smoother real-time video (25/30 fps with AI enabled), and improved audio pickup thanks to a redesigned dual-microphone array.
Dahua TiOC 2.0 Duo 180° Review: First Impressions

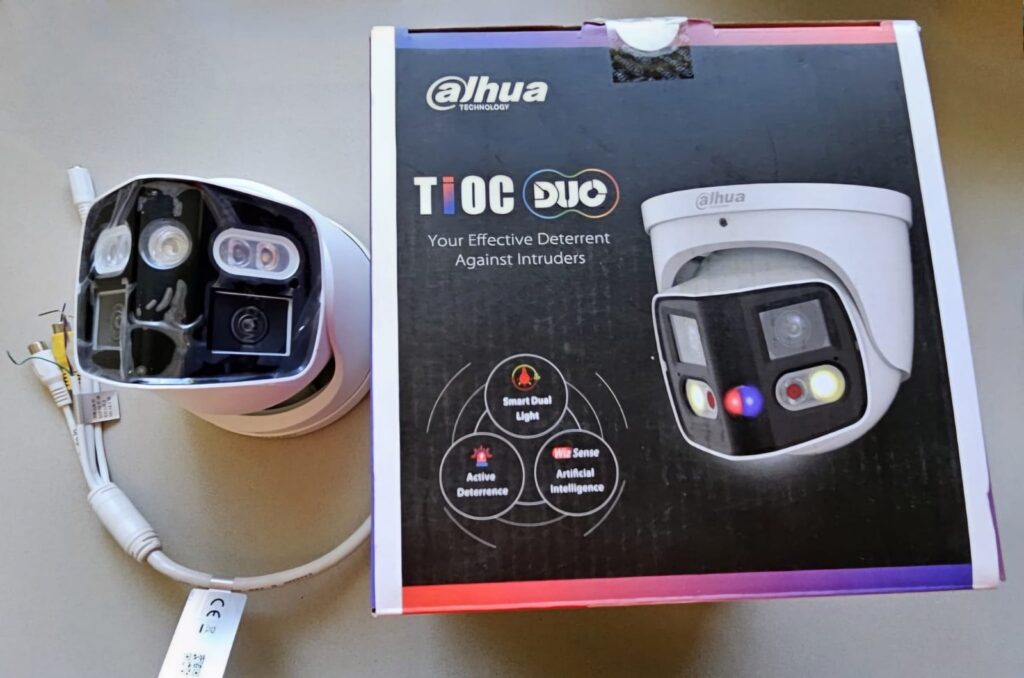

I chose to review the TiOC DUO DH-IPC-PDW3849-A180-AS-PV not just because it combines Dahua’s latest technologies, but since it delivers a true panoramic image using two perpendicular lenses. Add the full TiOC 2.0 feature set, and you get a highly capable all-in-one solution:
- WizSense for detecting people and vehicles while ignoring animals and shadows
- Dual lighting: white light for visibility and red/blue lights for alerts
- Built-in speaker for announcements
This model is a PoE-powered network camera from Dahua’s flagship lineup. Each of its two lenses offers 4MP resolution, combining into a single 8MP panoramic image at 4K resolution (3840×2160). The first thing I looked for was the seam between the two images, but Dahua’s algorithm makes it virtually impossible to detect. The result is a sharp, detailed panoramic image that holds up even under digital zoom.
To keep storage requirements manageable, the camera supports H.265 compression, which delivers smaller file sizes without sacrificing image quality. It also features a fixed 2.8mm lens, IP67 weather resistance, 120dB wide dynamic range (WDR), and a built-in microSD slot for backup recording.
Design and Installation: Clean Look, Smart Setup

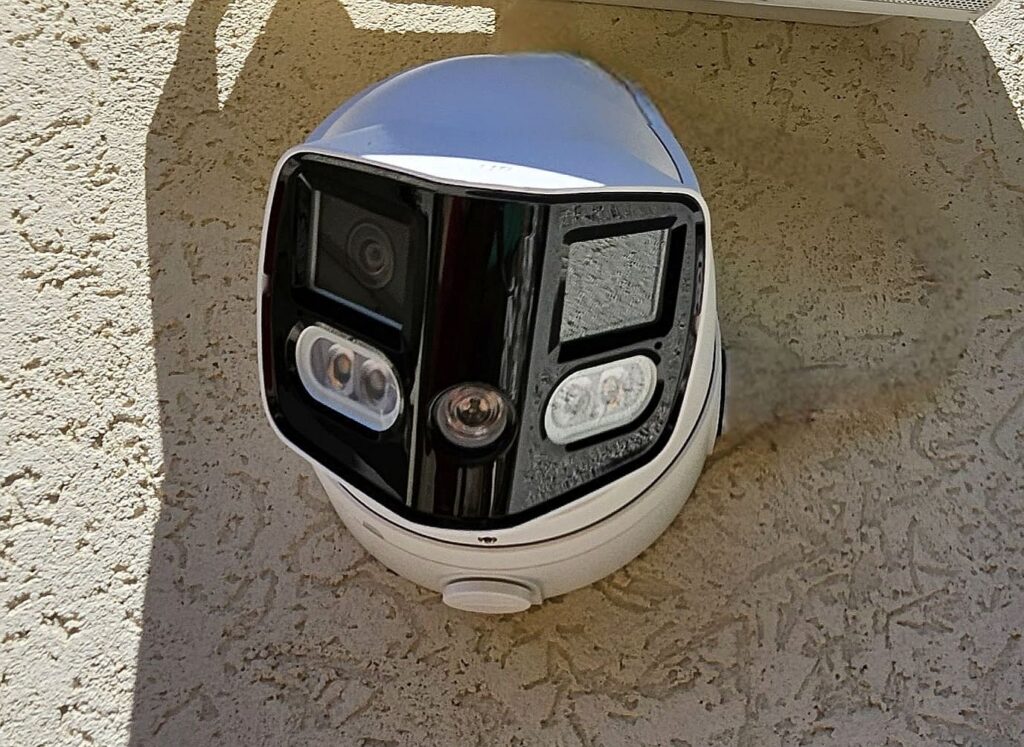

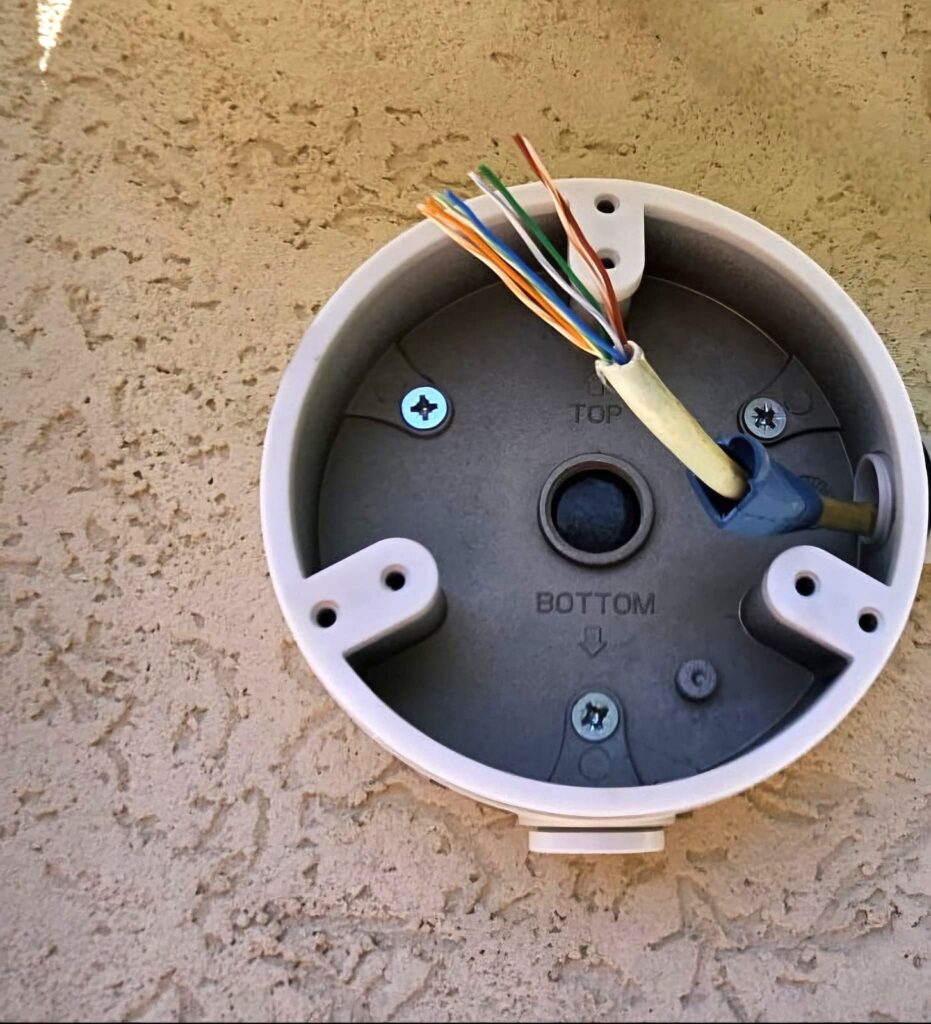

Installation is surprisingly clean and aesthetically pleasing. The camera’s rounded, minimal design blends in well, at a distance, it doesn’t even look like a high-end surveillance device. To maintain that clean look, it’s best to use Dahua’s dedicated PFA135 junction box, which mounts at the base.
Although the camera supports separate power sources, a single PoE cable is enough. Installation essentially comes down to connecting the network cable, tucking the wiring into the junction box, and securing everything in place.

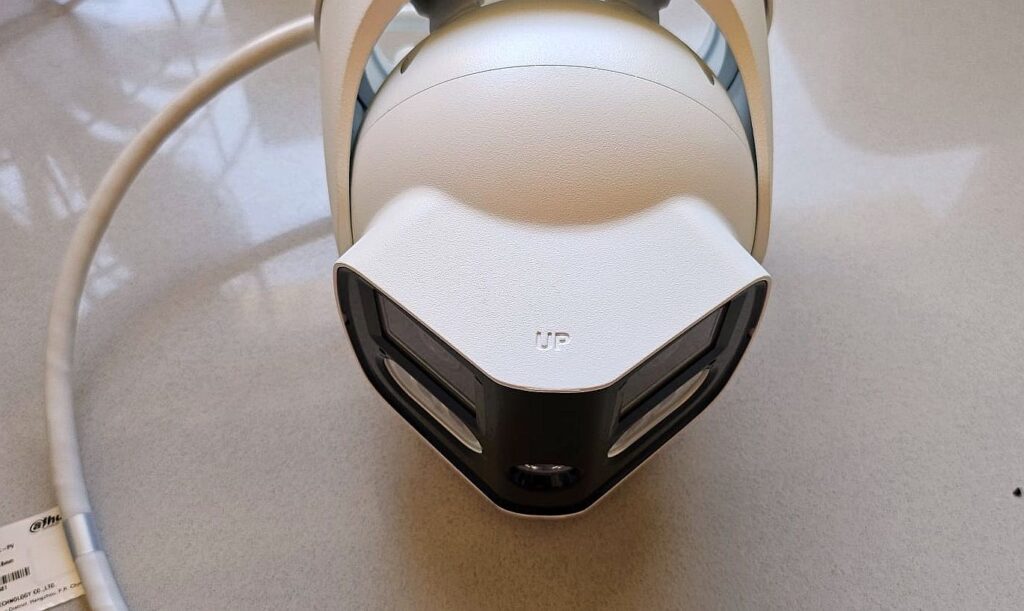

Unlike dome cameras that rotate freely, the TiOC DUO has a defined range of motion, so proper orientation during installation is important. Once mounted, it can be adjusted vertically and horizontally to achieve the desired angle. The result is a neat installation without unnecessary drilling or visible wiring.
180° Panoramic Camera Performance
To fully test the camera’s capabilities, I connected it to a Dahua NVR5208-EI recorder with advanced AI features. Once integrated, the full potential becomes clear.
The Intelligent Video System (IVS) allows you to define specific zones that will trigger an alert if a person or vehicle enters them. You can also configure voice messages, as well as whether red and blue warning lights should activate.
The camera’s AI-supported codec, combined with 4K resolution, delivers not only high-quality footage but also reliable real-time alerts.
AI Detection with WizSense: Does It Really Work?
To test SMD, I angled the camera toward the street. It successfully identified passing vehicles and pedestrians, categorizing events accurately as either human or vehicle. Every detection during my testing turned out to be valid.

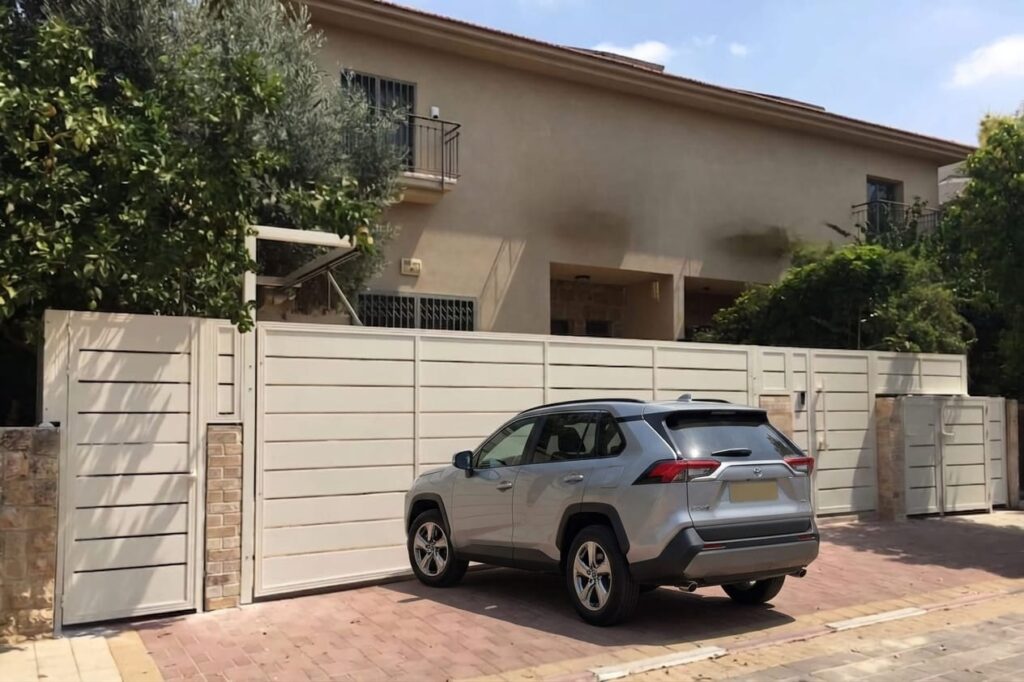

If you have a private driveway, you know how frustrating it is when someone blocks it. Now imagine your camera handling the situation for you, detecting the vehicle, distinguishing it from pedestrians or animals, and broadcasting a message like “You are blocking a private driveway” or “Private parking. please move your vehicle.” That’s exactly what the TiOC DUO can do.
Image Quality: Is 4K Panoramic Sharp Enough?

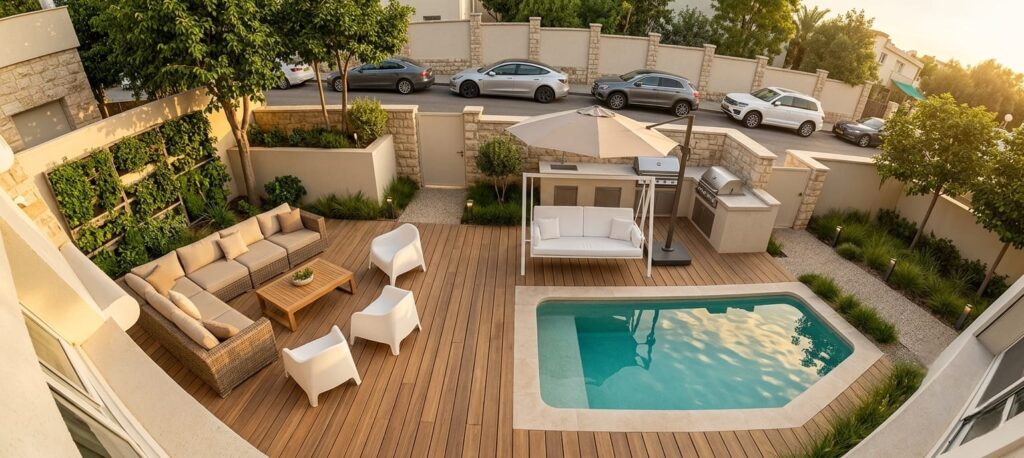

I positioned the camera facing my yard, and it didn’t take long to see the difference. The image is rich, sharp, and highly detailed. Even in panoramic mode, the clarity remains impressive and exactly what you’d expect from an 8MP 4K camera.
Final Verdict: Is This the Only Camera You Need?
The TiOC DUO demonstrates that installing security cameras doesn’t have to compromise your home’s design. In many cases, it eliminates the need for multiple cameras altogether. But beyond aesthetics, it offers something more: intelligent event analysis, accurate object recognition, real-time alerts, and even active response.
With features like white light illumination for full-color night footage, built-in alarms, and customizable voice warnings such as “Do not block the driveway” or “Private property,” it goes well beyond traditional surveillance.
Dahua sets itself apart with a meaningful innovation, a dual-lens panoramic camera that reduces clutter while enhancing coverage. Combined with AI that significantly minimizes false alerts, it delivers a unique solution that wasn’t widely available until recently.
If you’ve been considering installing security cameras at home, it’s worth knowing that the experience can be far more streamlined, intelligent, and visually appealing than you might expect.
